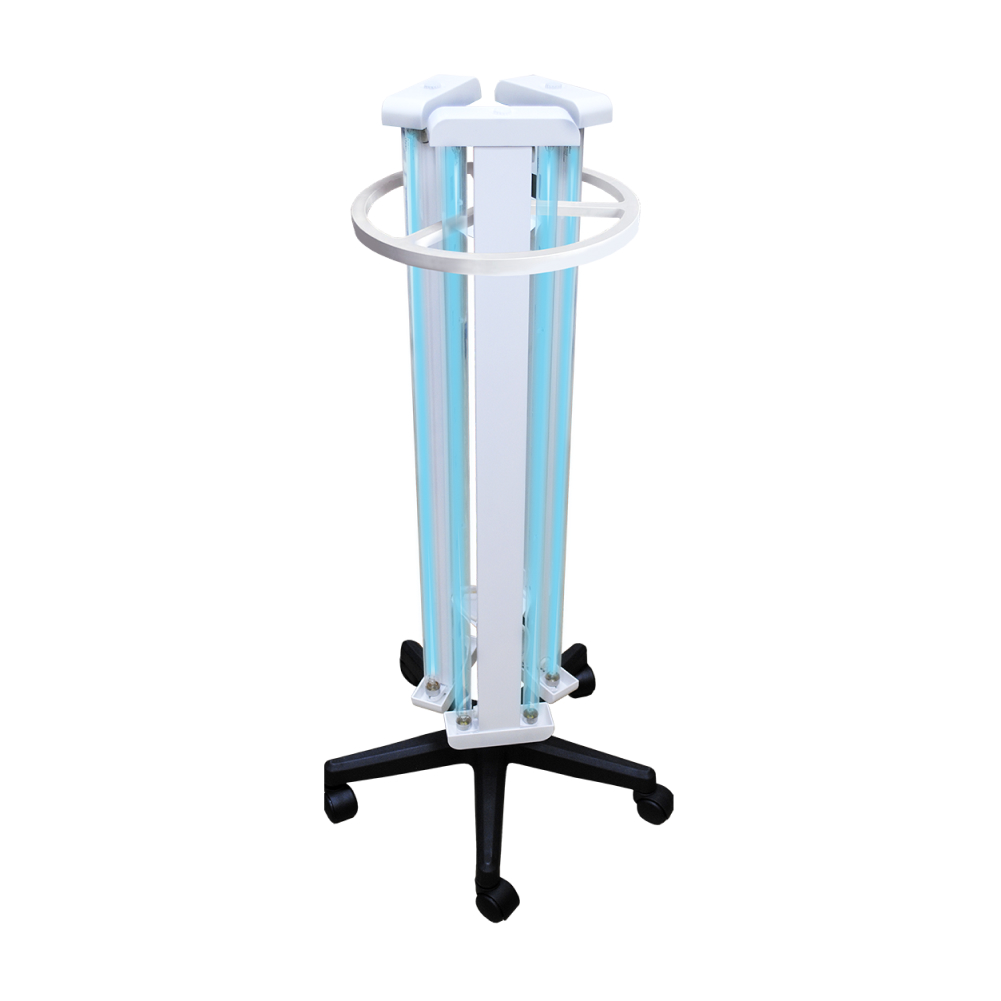

Bactericidal irradiator OBPE-450 six-lamp mobile

Currently, 4 types of bactericidal irradiators are produced: Wall-mounted OBB 1x15 (with a screen); Wall-mounted OBN-150; Ceiling-mounted OBP-300 (equipped with a set of parts for hanging from the ceiling, wall mounting is possible); Mobile on a tripod OBPe-450 (designed for rapid disinfection of large volumes of air and surfaces). The radiation source of the irradiators are low-pressure bactericidal mercury lamps emitting ultraviolet rays with a wavelength of 253.

7 nm, harmful to various bacteria, viruses and microorganisms in the air and on indoor surfaces. Ultraviolet bactericidal irradiators are designed to disinfect the air of hospitals, clinics, medical and preventive, industrial and public institutions (hotels, shops, gyms, baths, children's institutions, schools), storages of agricultural products, as well as for use in the food industry.

Imported components are used in these devices and radio interference filters and a compensating capacitor are installed, reducing power consumption. Bactericidal irradiators have a lightweight design and an improved design, the device parts are coated with polyester powder paint, resistant to UV radiation.

All types of irradiators are successfully sold throughout Russia and abroad. Technical characteristics of bactericidal irradiators Characteristic OBN-150 OBP-300 OBPe-450 Number of lamps 1 2 6 Placement method wall-mounted ceiling mobile Version open or ecr.

open Total Bactericidal flux of lamps, W 11.2 22.

4 67.2 Irradiation at a distance of 1m, W/ m2 1.

25 2.5 4.

5 Power consumption, no more, VA 35 65 300 Power supply 220 V 50 Hz 220 V 50 Hz 220 V 50 Hz Average service life, years 5 5 5 Overall dimensions, mm 50x80x940 110x80x940 580×1100 Weight, not more than kg 1,9 2,0 15 Protection class against electric shock 1 type B 1 type B 1 type B Radiation source Lamp type LTC30 T8 LTC30 T8 LTC30 T8 Power, W 30 30 30 Service life, hour 8000 8000 8000 Attention!!!
